The black elves series LED display is a big size LED display for indoor conference.
Pixel pitch:
0.625mm/0.78mm/0.93mm/1.25mm/1.56mm/1.875mmBrightness:
800~1,000nitsCabinet size:
600x337.5x28 mm/480x270x28mm
No welding wire, reduce the failure rate of the lamp bead. Full flip chip, no welding pad block, high luminous efficiency, and wider view angle. Light-emitting chip direct contact with the PCB, which improves heat dissipation.

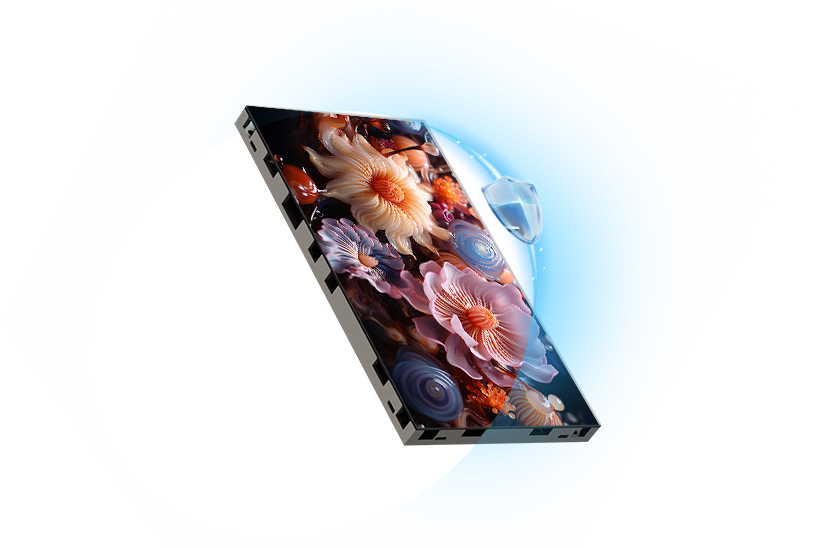

The Black elves series LED display use special COB packaging technology with an excellent product performance, featuring anti-collision anti-oxidation, anti-static, moisture-resistant and easy to clean.

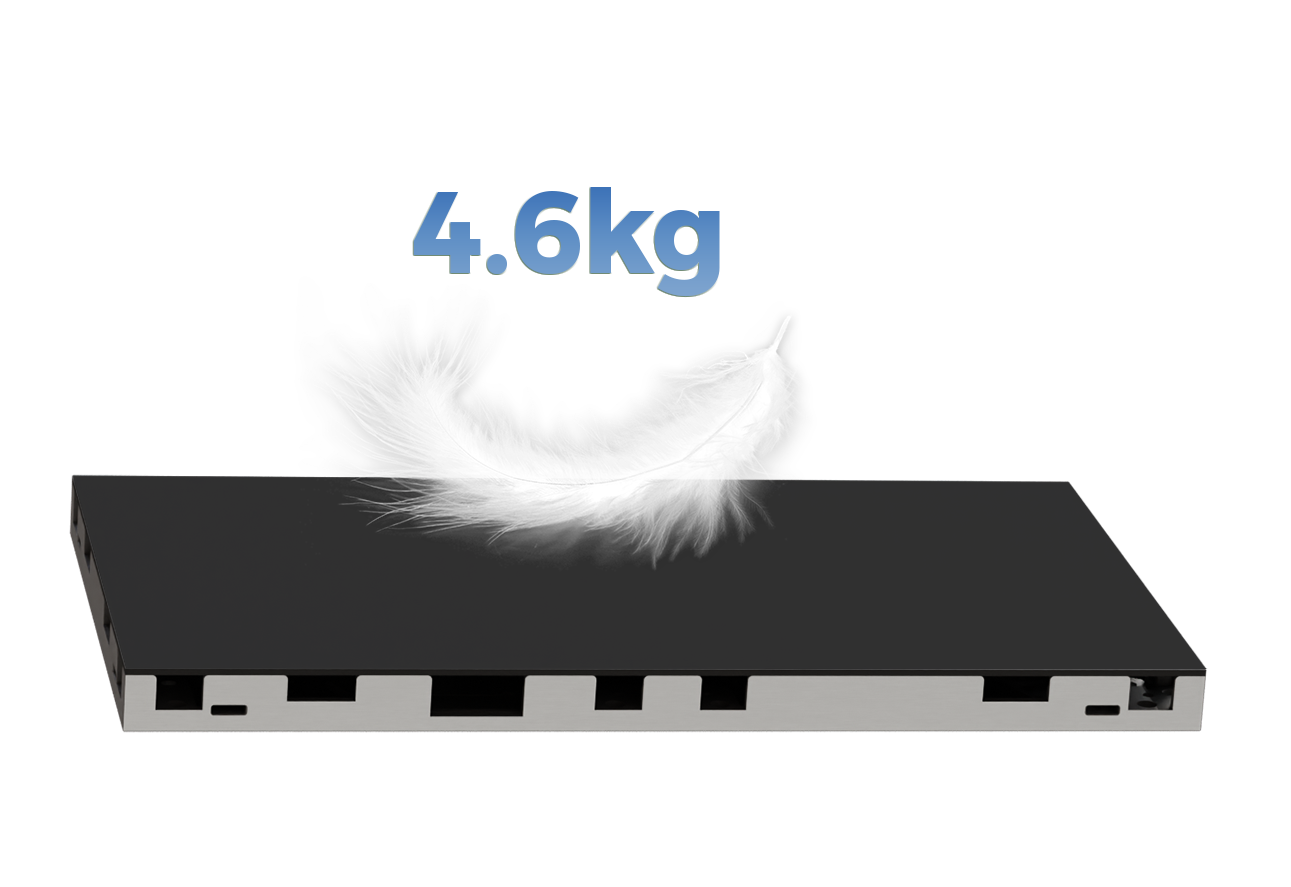

With a mere 28mm thickness and a featherlight cabinet weight of just 4.6kg.
Standard brightness up to 1,000 nits.
Exceeding 15,000:1 contrast, the image is clear and bright, with details fully revealed.
Ultra-wide viewing Angle, up to 170°/170°.
| Model | 63J06 | 63J07 | 63J09 | 63J12 | 63J15 | 63J18 | 42A07 | 42A10 | 42A12 | 42A15 |
| Pixel Configuration | COB | COB | COB | COB | COB | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 0.625 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 | 0.75 | 1.0 | 1.25 | 1.5 |
| Cabinet Size(mm)(WxHxD) | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 480x270x28 | 480x270x28 | 480x270x28 | 480x270x28 |
| Cabinet Resolution(WxH) | 960x540 | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Weight(kg/cabinet) | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 3.2 | 3.2 | 3.2 | 3.2 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | 63J06 | 63J07 | 63J09 | 63J12 | 63J15 | 63J18 | 42A07 | 42A10 | 42A12 | 42A15 |
| Pixel Configuration | COB | COB | COB | COB | COB | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 0.625 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 | 0.75 | 1.0 | 1.25 | 1.5 |
| Cabinet Size(mm)(WxHxD) | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 480x270x28 | 480x270x28 | 480x270x28 | 480x270x28 |
| Cabinet Resolution(WxH) | 960x540 | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Weight(kg/cabinet) | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 3.2 | 3.2 | 3.2 | 3.2 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
