Magic Cube Series

The magic cube series LED display is an ultra-high-definition LED display product, targeting the fine pitch LED display market.

Pixel pitch:

0.9375mm/1.25mm/1.56mm/1.87mm/2.5mm/3.7mm

Brightness:

600~800nits

Cabinet size:

600x337.5x38mm/600x337.5x58mm

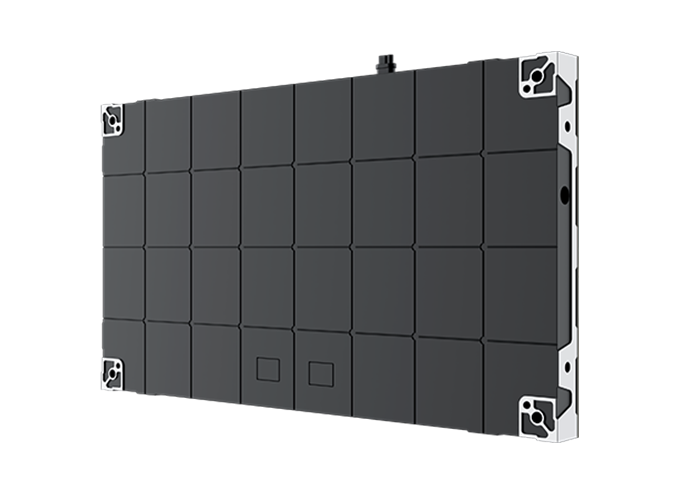

Die-casting
aluminum cabinet

SMD/MIP
optional

Common cathode
energy saving

Fully front
maintenance

High protection

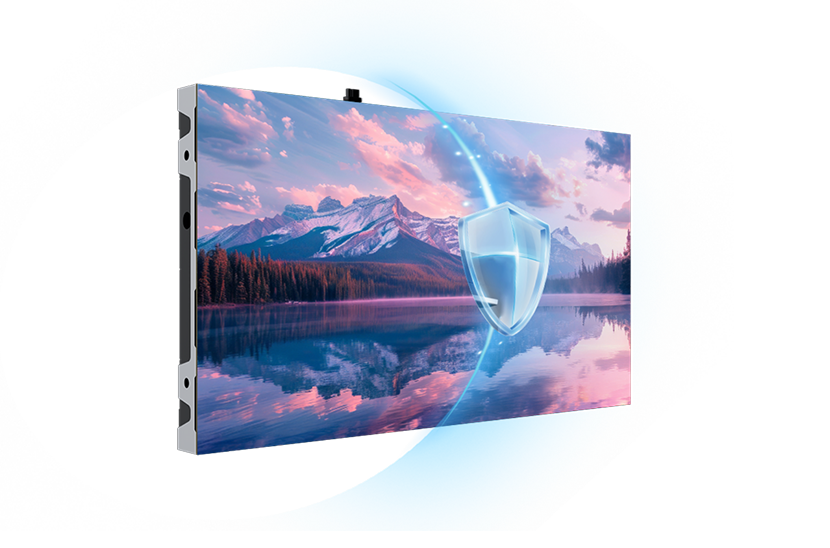

GOB Package Protection

Special treatment with G0B technology, enabling surface water-resistant,dust-resistant, impact-resistant and anti-static.

Ultra low power consumption and temperature rise

Using flip chip LED and common cathode drive, it consumes 30% less energy and runs cooler than standard fine pitch LED displays.

Ultra High Contrast Ratio

With a contrast ratio 20,000:1, it displays darker, sharper images for a softer screen.

APPLICATION SCENARIOS

Conference

Monitoring center

Command center

Data center

Specs

Download product brochure

Watch Product Video

Model	63L09	63L12	63L15	63L18	63L25	63L37
Pixel Configuration	SMD	SMD	SMD	SMD	SMD	SMD
Pixel Pitch(mm)	0.9375	1.25	1.56	1.87	2.5	3.7
Cabinet Size(mm)(WxHxD)	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58
Cabinet Resolution(WxH)	640x360	480x217	384x216	320x180	240x135	160x90
Cabinet Weight(kg/cabinet)	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7
Refresh Rate(Hz)	3,840Hz	3,840Hz	3,840Hz	3,840Hz	3,840Hz	3,840Hz
Grayscale(bit)	14-16	14-16	14-16	14-16	14-16	14-16
Brightness(nits)	600-800	≤800	≤800	≤800	≤800	≤800
Avg. Power Consumption(W/㎡)	≤240	≤220	≤200	≤170	≤130	≤130
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000

Model	63L09	63L12	63L15	63L18	63L25	63L37
Pixel Configuration	SMD	SMD	SMD	SMD	SMD	SMD
Pixel Pitch(mm)	0.9375	1.25	1.56	1.87	2.5	3.7
Cabinet Size(mm)(WxHxD)	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58	600x337.5x38/58
Cabinet Resolution(WxH)	640x360	480x217	384x216	320x180	240x135	160x90
Cabinet Weight(kg/cabinet)	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7	5.1/7.7
Refresh Rate(Hz)	3,840Hz	3,840Hz	3,840Hz	3,840Hz	3,840Hz	3,840Hz
Grayscale(bit)	14-16	14-16	14-16	14-16	14-16	14-16
Brightness(nits)	600-800	≤800	≤800	≤800	≤800	≤800
Avg. Power Consumption(W/㎡)	≤240	≤220	≤200	≤170	≤130	≤130
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000
