YOGA Series

The YOGA series LED display is a soft LED display product that can be flexibly and quickly spliced.

Pixel pitch:

1.25mm/1.667mm/1.875mm/2.5mm/3mm/4mm

Brightness:

600~800nits

Module size:

240x120mm/240x160mm/270x120mm

HD display

Curve Splicing

Easy maintenance

High protection

Seamless splicing

Flexible Modules, Customized Shapes

Soft and front service modules, cabinet can be customized according to specific project.Both concave and convex available. Minimum diameter can be only 763.9mm.

Seamless Assembly

Yoga series allows for seamless convex or concave LED designs where traditional flat / hard panels will not work

Multiple Application Scenarios

This product is widely used in various rental scenarios, such as command center, shopping mall, commercial display, stadiums and more.

Support TOP-COB Technology, High Protection

Through the TOP-COB technology, the module surface is fully sealed with epoxy resin, providing complete protection for the product against various external influences.

Easy to Mold

PCB board adopting flexible soft board, with only 8.6mmmodule thickness, ultra-thin in design, occupying small space.

APPLICATION SCENARIOS

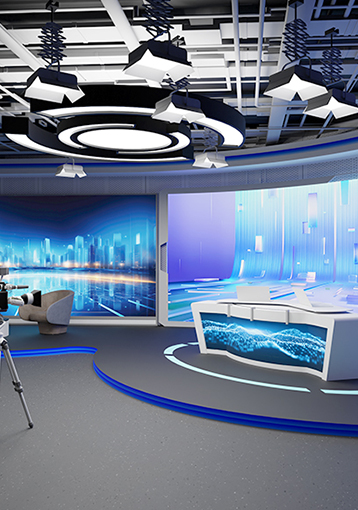

Studio

Airport

Museum

Shopping mall

Specs

Download product brochure

Watch Product Video

Model	YG12	YG16	YG18	YG25	YG3	YG4
Pixel Configuration	SMD	SMD	SMD	SMD	SMD	SMD
Pixel Pitch(mm)	1.25	1.56	1.87	2.5	3	4
Module Size(mm)(WxH)	240x120	240x160	270x120	240x160	240x120	240x120
Module Resolution(WxH)	192x96	144x96	144x64	96x64	80x40	60x30
Refresh Rate(Hz)	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920
Grayscale(bit)	14	14	14	14	14	14
Brightness(nits)	600	600	600	800	800	800
Viewing Angle（H/V）	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000

Model	YG12	YG16	YG18	YG25	YG3	YG4
Pixel Configuration	SMD	SMD	SMD	SMD	SMD	SMD
Pixel Pitch(mm)	1.25	1.56	1.87	2.5	3	4
Module Size(mm)(WxH)	240x120	240x160	270x120	240x160	240x120	240x120
Module Resolution(WxH)	192x96	144x96	144x64	96x64	80x40	60x30
Refresh Rate(Hz)	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920
Grayscale(bit)	14	14	14	14	14	14
Brightness(nits)	600	600	600	800	800	800
Viewing Angle（H/V）	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000
