NOX Series

The NOX series LED display is an ultra-high-definition product developed for the outdoor LED display market.

Pixel pitch:

1.25mm/1.5mm/1.87mm

Brightness:

≤4,000nits

Cabinet size:

480x540x83mm

Die casting
aluminum cabinet

HD display

Fully front
maintenance

High protection

Full Flip Chip MIP Panel

Flip chip MIP technology, no welding pad block, high luminous efficiency, wider view angle. No welding wire, reduce the failure rate of the lamp bead. Light-emitting chip direct contact with the PCB, which improves heat dissipation.

Ultra-high Refresh

7680Hz ultra-high refresh design, no fear of various shooting scenes.

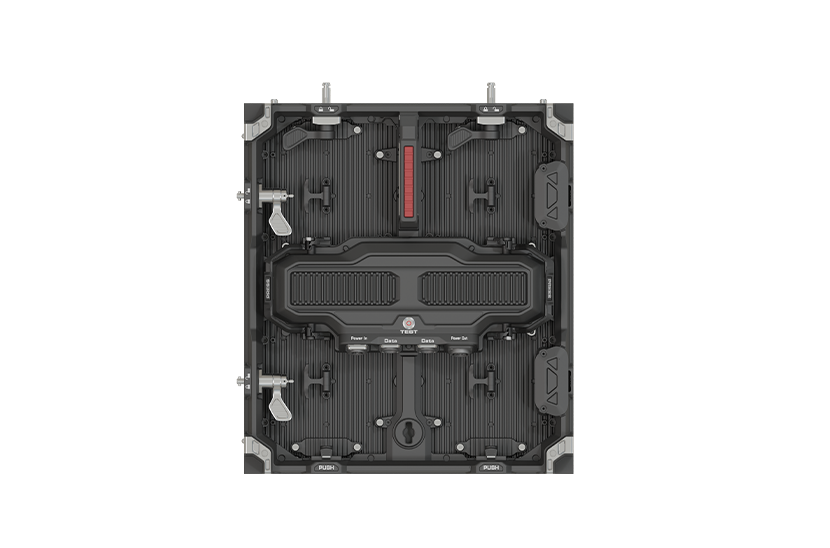

8:9 Cabinet Design

Single cabinet aspect ratio of 8:9 enables quick splicing into standard 16:9 display screens.

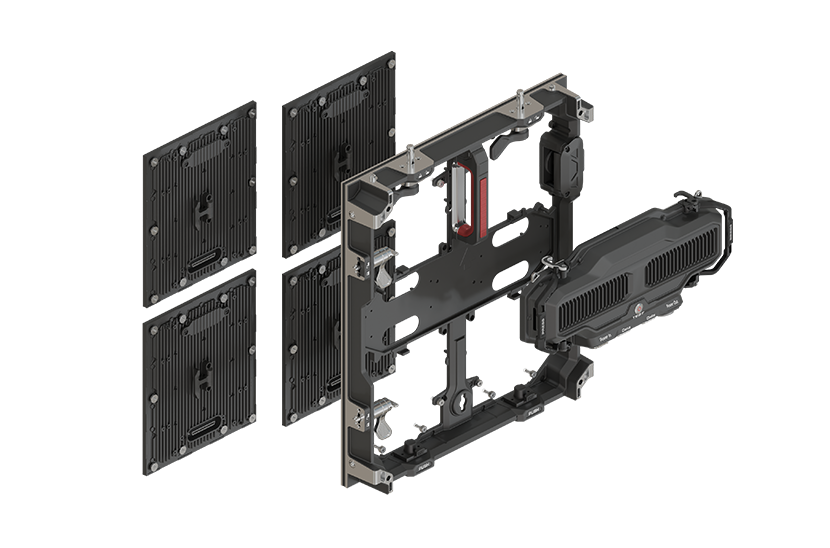

Modular Design

Fully modular cabinet architecture ensures fast, effortless maintenance.

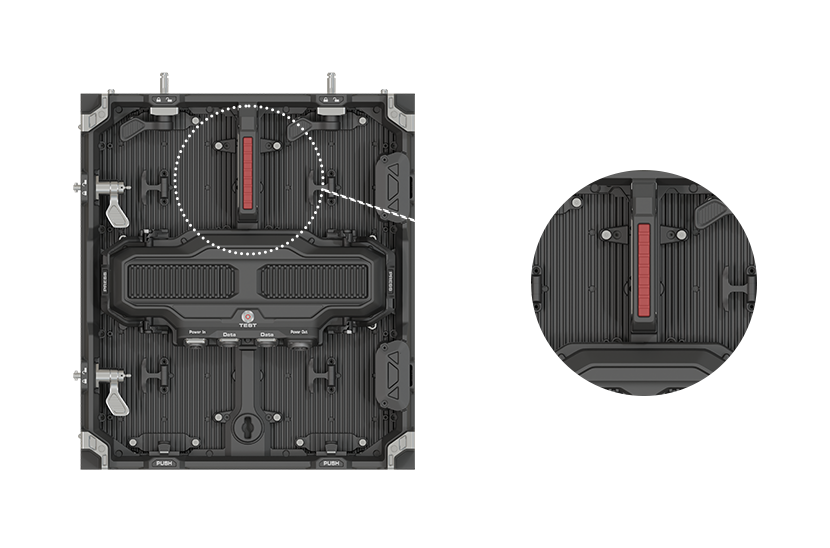

Ergonomic Top Handle

Integrated top handle simplifies handling during installation and eliminates accidental drop risks.

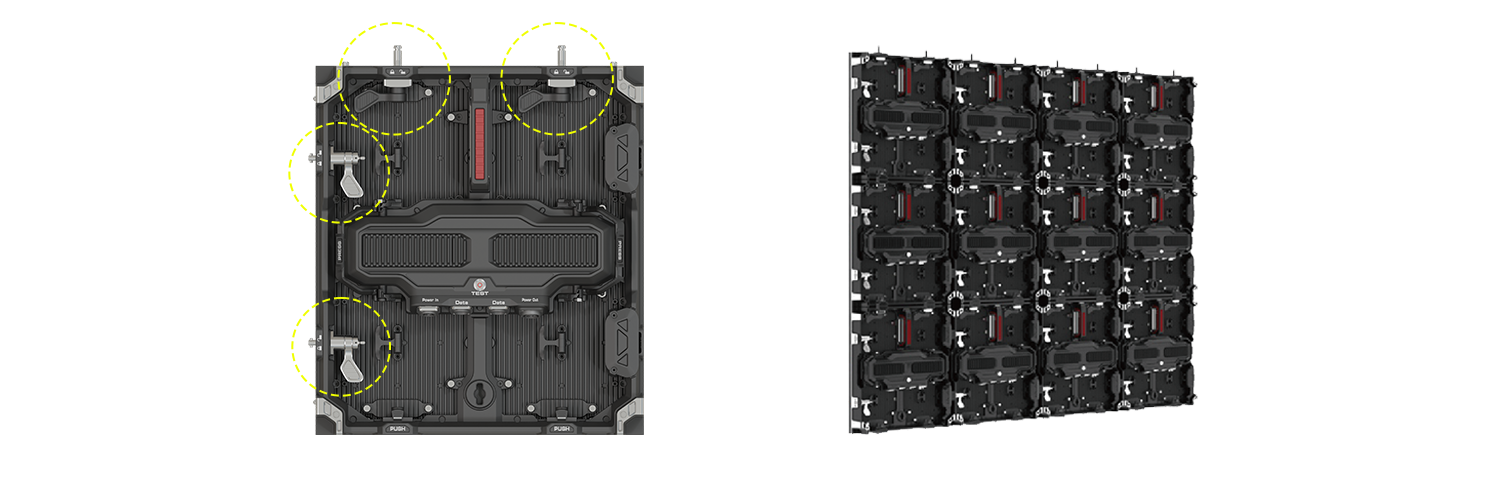

Fast Lock Design

Precision fast-locking system for rapid, hassle-free installation.

High Protection

Equipped with a front MIP+GOB coating, offering full IP65 front and rear protection that is completely waterproof, moisture-proof, anti-static, and collision-resistant.

Effective

High order control system supports chroma brightness, full grayscale, and thermal correction, ultra-high refresh rate, wide color gamut, HDR picture display, and 16-bit high grayscale with low brightness.

APPLICATION SCENARIOS

Outdoor advertising

Commercial building

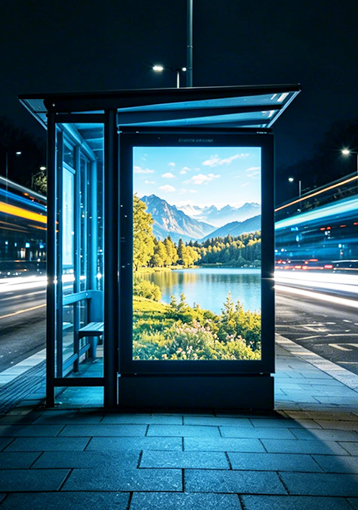

Bus Station

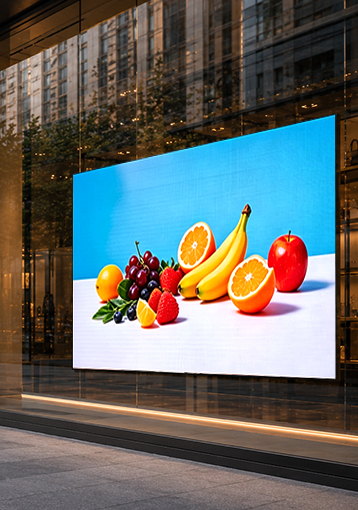

Retail

Specs

Download product brochure

Watch Product Video

Model	45E12	45E15	45E18
Pixel Configuration	MIP	MIP	MIP
Pixel Pitch(mm)	1.25	1.5	1.87
Cabinet Size(mm)（WxHxD）	480x540x85	480x540x85	480x540x85
Cabinet Resolution（WxH）	384x432	320x360	256x288
Cabinet Weight(kg/cabinet)	10	10	10
Refresh Rate(Hz)	3,840~7,680	3,840~7,680	3,840~7,680
Grayscale(bit)	14~16	14~16	14~16
Brightness(nits)	≤4,000	≤4,000	≤4,000
Working Voltage	AC 110V~240V,50~60Hz	AC 110V~240V,50~60Hz	AC 110V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000
