Mega Series

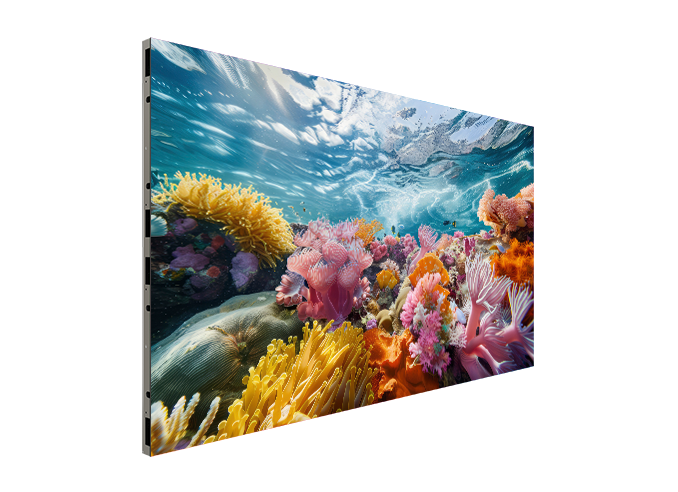

The mega series LED display is a large size full flip chip COB display for house application market.

Pixel Pitch:

0.62mm/0.78mm/0.93mm/1.25mm/1.56mm/1.875mm

Brightness:

1,000nits

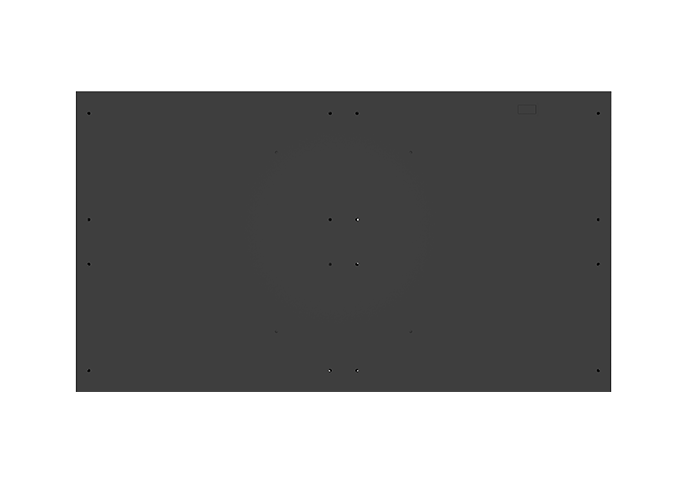

Cabinet size:

1,200x675x28mm

Die casting
aluminum cabinet

COB/MIP
optional

Common cathode
energy saving

Light-weight

High protection

Configured with The Most-advanced Drive IC

Common cathode PWM constant current driver IC,energy saving. Large channel, integrated column and vertical control IC, less IC, less heat dissipation. High gray level 16bit, work with control system can be 22bit+ color processing depth. 7,680HZrefresh rate, available for XR solution.

Full Flip Chip Common Cathode COB Panel

Full flip chip, no welding pad block, high luminous efficiency, and wider view angle. No welding wire, reduce the failure rate of the lamp bead. common cathode design, reduce power consumption, green and environmental protection.

COB Package Protection

Special treatment with G0B technology, enabling surface water-resistant, dust-resistant, impact-resistant and anti-static.

Light-weight Design

light-weight design, save your labor cost during installation.

16-bit Processing Depth

Low brightness with high grayscale, vibrant colors, and a soft, delicate image.

APPLICATION SCENARIOS

Conference

Monitoring center

Command center

Home cinema

Specs

Watch Product Video

Model	C6J06	C6J07	C6J09	C6J12	C6J15	C6J18
Pixel Configuration	COB	COB	COB	COB	COB	COB
Pixel Pitch(mm)	0.62	0.78	0.93	1.25	1.56	1.87
Cabinet Size(mm)(WxHxD)	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28
Cabinet Resolution(WxH)	1,920x1,080	1,536x864	1,280x720	960x540	768x432	640x360
Cabinet Weight(kg/cabinet)	18.6	18.6	18.6	18.6	18.6	18.6
Refresh Rate(Hz)	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680
Grayscale(bit)	16	16	16	16	16	16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000	1,000
Viewing Angle（H/V）	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000

Model	C6J06	C6J07	C6J09	C6J12	C6J15	C6J18
Pixel Configuration	COB	COB	COB	COB	COB	COB
Pixel Pitch(mm)	0.62	0.78	0.93	1.25	1.56	1.87
Cabinet Size(mm)(WxHxD)	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28	1,200x675x28
Cabinet Resolution(WxH)	1,920x1,080	1,536x864	1,280x720	960x540	768x432	640x360
Cabinet Weight(kg/cabinet)	18.6	18.6	18.6	18.6	18.6	18.6
Refresh Rate(Hz)	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680
Grayscale(bit)	16	16	16	16	16	16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000	1,000
Viewing Angle（H/V）	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000
