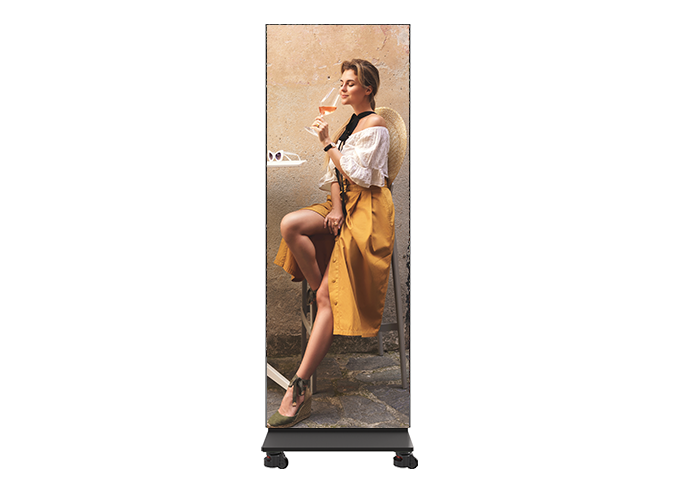

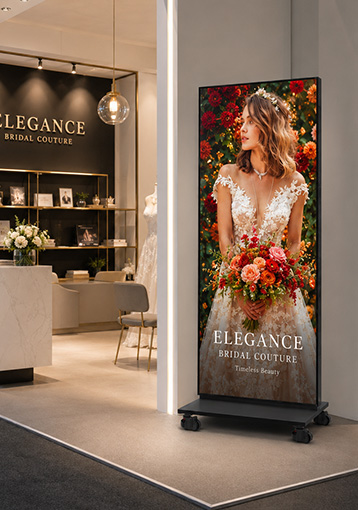

The S-Poster series LED display is an all-in-one smart LED display developed by LP DISPLAY for indoor HD poster display market.
Pixel pitch:
0.93mm/1.25mm/1.56mm/1.875mm/2.5mmBrightness:
800~1,000nitsExternal Dimension:
610mmx2,187mmx600mm

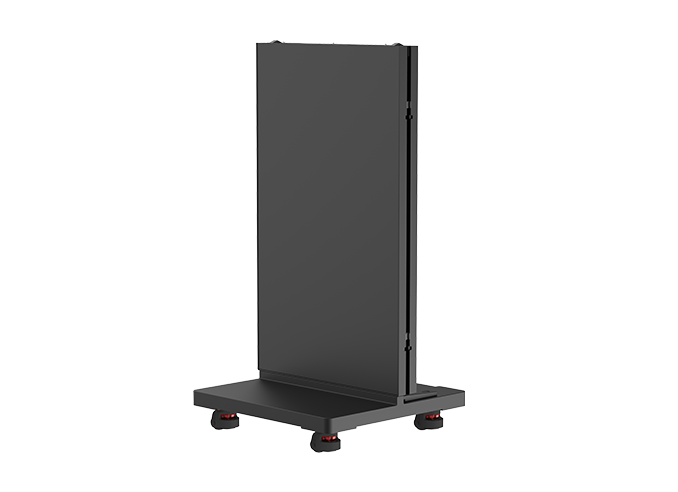

Only 28mm thick display area, occupying little space, and movable with wheels.

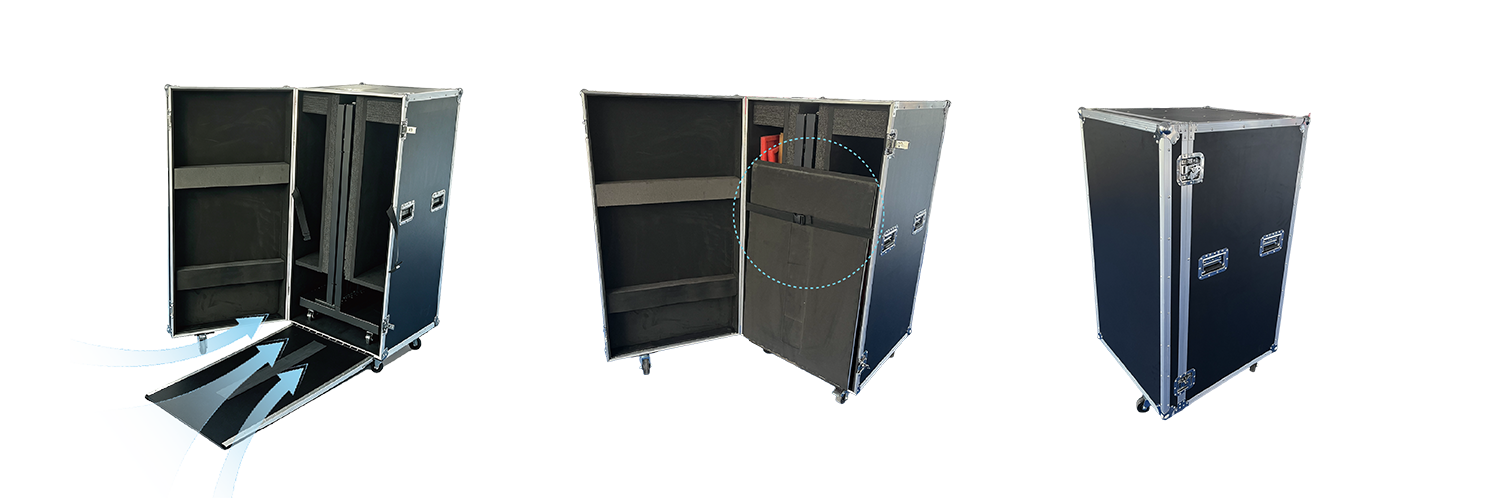

Combines a foldable structure, built-in wheels, and a durable flight case for seamless mobility and rapid installation at events and exhibitions.

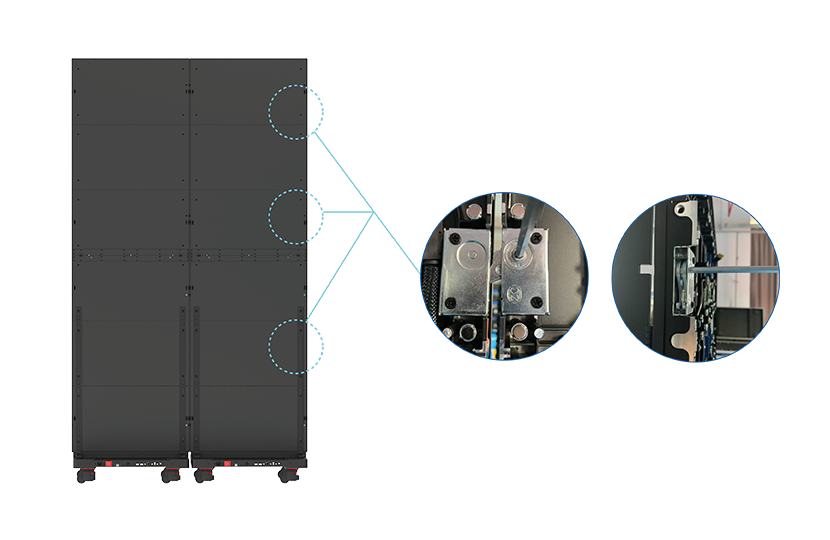

Use as a standalone poster or splice multiple units together to build a larger video wall. Built-in quick-lock mechanisms ensure fast, tool-free setup.

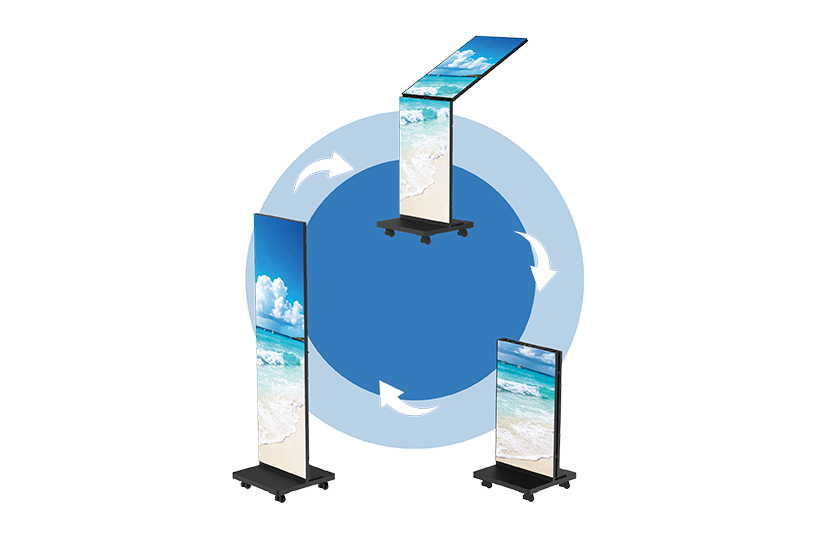

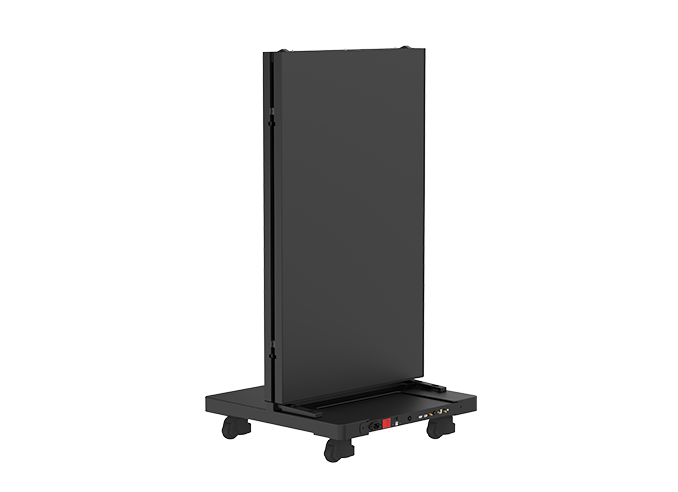

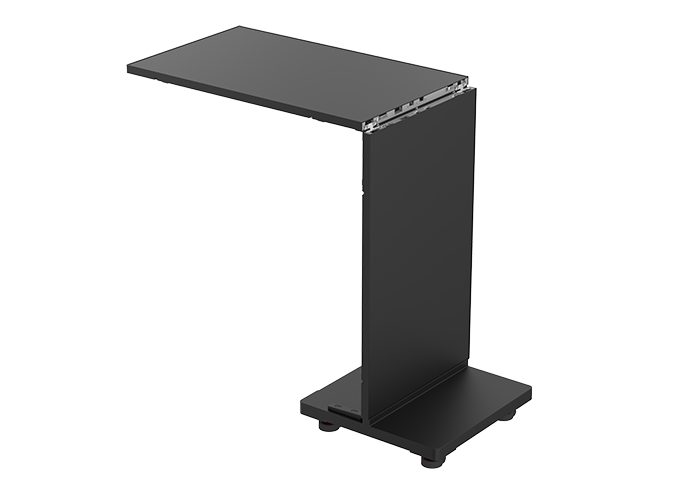

Foldable design for compact storage and easy transport in a durable flight case.
| Model | SPoster09 | SPoster12 | SPoster15 | SPoster18 | SPoster09 | SPoster12 | SPoster15 | SPoster18 | SPoster25 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 0.9 | 1.25 | 1.56 | 1.875 | 0.9 | 1.25 | 1.56 | 1.875 | 2.5 |
| External Dimension(mm)（WxHxD） | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 |
| Resolution（WxH） | 640x2,160 | 480x1,620 | 384x1,296 | 320x1080 | 640x2,160 | 480x1,620 | 384x1,296 | 320x1080 | 240x810 |
| Weight(kg) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access |
| Communication Mode | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | SPoster09 | SPoster12 | SPoster15 | SPoster18 | SPoster09 | SPoster12 | SPoster15 | SPoster18 | SPoster25 |
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 0.9 | 1.25 | 1.56 | 1.875 | 0.9 | 1.25 | 1.56 | 1.875 | 2.5 |
| External Dimension(mm)（WxHxD） | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 | 610x2,187x600 |
| Resolution（WxH） | 640x2,160 | 480x1,620 | 384x1,296 | 320x1080 | 640x2,160 | 480x1,620 | 384x1,296 | 320x1080 | 240x810 |
| Weight(kg) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access |
| Communication Mode | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
