Navigator Series

The Navigator series LED display is an exceptional ultra-high-definition product specifically designed for the demanding display market.

Pixel Pitch:

1.2mm/1.56mm/1.8mm/2.5mm

Brightness:

≤800nits

Cabinet size:

800x337.5x38mm

Die-casting
aluminum cabinet

SMD/COB
optional

Common cathode
energy saving

Seamless
splicing

High protection

21:9 Ultra Wide Display Ratio

With its unique 21:9 display ratio design, it is perfectly suited for e"sports and ultra wide screen conference system.

Dual Backup

In the event of a failure of the main receiving card or power supply, the backup system will automatically switch over, ensuring that the display remains uninterrupted. This feature enhances the stability and reliability of the large-screen display.

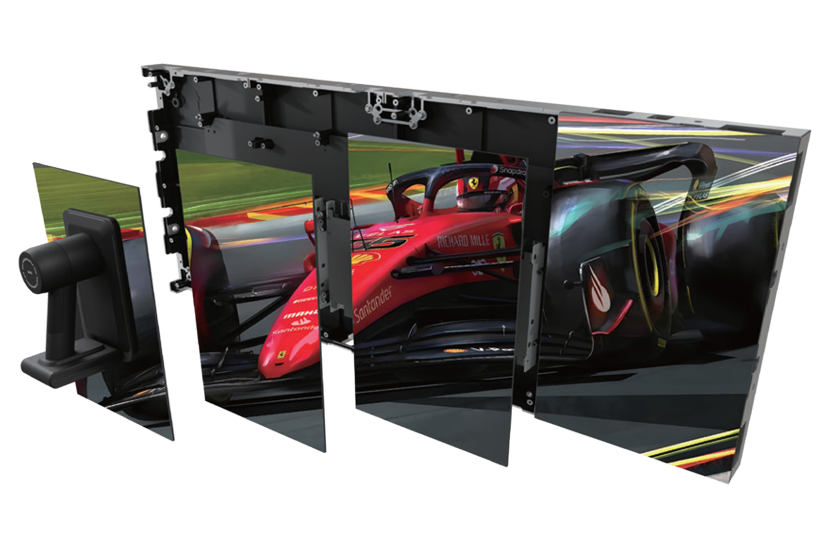

Less Splicing Lines

Support full front maintenance, featuring hot-plug modules and cable-free connection. This design saves time and labor there by making users handle the LED screen with ease.

16-bit Processing Depth

Low brightness with high grayscale, vibrant colors, and a soft, delicate image.

APPLICATION SCENARIOS

Conference

Monitoring center

Command center

Data center

Specs

Download product brochure

Watch Product Video

Model	83A12	83A15	83A18	83A25	83A15C
Pixel Configuration	SMD	SMD	SMD	SMD	COB
Pixel Pitch(mm)	1.25	1.56	1.8	2.5	1.56
Cabinet Size(mm)(WxHxD)	800x337.5x38	800x337.5x38	800x337.5x38	800x337.5x38	800x337.5x38
Cabinet Resolution(WxH)	640x270	512x216	424x180	320x135	512x216
Cabinet Weight(kg/cabinet)	6.8	6.8	6.8	6.8	6.8
Refresh Rate(Hz)	3,840	3,840	3,840	3,840	3,840
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	≤800	≤800	≤800	≤800	≤1,000
Viewing Angle（H/V）	160°/160°	160°/160°	160°/160°	160°/160°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000

Model	83A12	83A15	83A18	83A25	83A15C
Pixel Configuration	SMD	SMD	SMD	SMD	COB
Pixel Pitch(mm)	1.25	1.56	1.8	2.5	1.56
Cabinet Size(mm)(WxHxD)	800x337.5x38	800x337.5x38	800x337.5x38	800x337.5x38	800x337.5x38
Cabinet Resolution(WxH)	640x270	512x216	424x180	320x135	512x216
Cabinet Weight(kg/cabinet)	6.8	6.8	6.8	6.8	6.8
Refresh Rate(Hz)	3,840	3,840	3,840	3,840	3,840
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	≤800	≤800	≤800	≤800	≤1,000
Viewing Angle（H/V）	160°/160°	160°/160°	160°/160°	160°/160°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000
