Eva Pad Series | LPDISPLAY

ProductsEva Pad Series

EVA PAD Series

The EVA PAD series LED display is an all-in-one smart LED display developed by LP DISPLAY for indoor conference market.

Pixel pitch:

0.625mm/0.75mm/0.78mm/0.93mm/1.25mm/1.5mm/1.56mm/1.875mm/2.5mm

Brightness:

1,000nits

Size:

108"/ 130"/136"/ 163"/217"

Excellent performance

HD display

Multiple sizes

Fully front
maintenance

High protection

Multiple Product Installation Methods

The product offers multiple installation options, allowing for either wheel-based floor installation or fixed mounting to walls.

Advanced Color Processing

It can expand the color range, covering a broader color space, resulting in a more realistic and vivid image.

Interactive Function

Interactive function options for touch scenario, 10 point touch.

Remote Control

With the remote control, it is easy to adjust volume, brightness, and open files to play.

Split Screen

Supports screen mirroring of PC, smartphone and ipad. Share screens from up to 9 devices simultaneously.

APPLICATION SCENARIOS

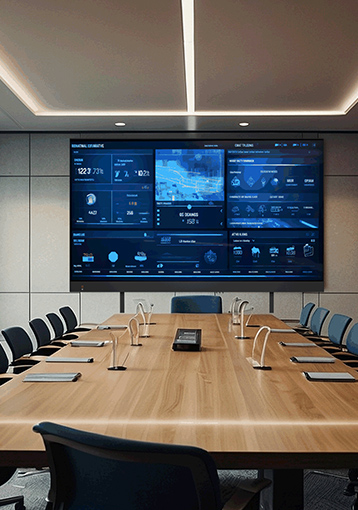

Conference

Monitoring center

Command center

Exhibition hall

Specs

Download product brochure

Watch Product Video

Model	108-2K	130-2K	136-2K	163-2K	217-2K	108-4K	130-4K	136-4K	163-4K	217-4K
Pixel Configuration	COB/SMD	COB	COB/SMD	SMD	SMD	COB	COB	COB	COB	COB
Pixel Pitch(mm)	1.25	1.5	1.56	1.875	2.5	0.625	0.75	0.78	0.93	1.25
Dispaly Size(mm)（WxH）	2,400x1,350	2,880x1,620	3,000x1,687.5	3,600x2,025	4,800x2,700	2,400x1,350	2,880x1,620	3,000x1,687.5	3,600x2,025	4,800x2,700
Resolution（WxH）	1,920x1,080	1,920x1,080	1,920x1,080	1,920x1,080	1,920x1,080	3,840x2,160	3,840x2,160	3,840x2,160	3,840x2,160	3,840x2,160
Overall Weight(kg)	80	115	120	172	305	80	115	120	174	305
Refresh Rate(Hz)	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Color Temp(K)	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Control Panel Type	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel
Interface	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1
WIFI Mode	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000

Model	108-2K	130-2K	136-2K	163-2K	217-2K	108-4K	130-4K	136-4K	163-4K	217-4K
Pixel Configuration	COB/SMD	COB	COB/SMD	SMD	SMD	COB	COB	COB	COB	COB
Pixel Pitch(mm)	1.25	1.5	1.56	1.875	2.5	0.625	0.75	0.78	0.93	1.25
Dispaly Size(mm)（WxH）	2,400x1,350	2,880x1,620	3,000x1,687.5	3,600x2,025	4,800x2,700	2,400x1,350	2,880x1,620	3,000x1,687.5	3,600x2,025	4,800x2,700
Resolution（WxH）	1,920x1,080	1,920x1,080	1,920x1,080	1,920x1,080	1,920x1,080	3,840x2,160	3,840x2,160	3,840x2,160	3,840x2,160	3,840x2,160
Overall Weight(kg)	80	115	120	172	305	80	115	120	174	305
Refresh Rate(Hz)	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680	3,840~7680
Grayscale(bit)	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16	14~16
Brightness(nits)	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Color Temp(K)	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000	2,000~12,000
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Control Panel Type	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel	Remote control/Touch panel
Interface	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1	HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1
WIFI Mode	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1	Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000
