Die-casting
aluminum cabinet
FX Series
Pixel pitch(mm)：1.25/1.56/1.86/1.95/2.5/2.6/2.9
The flex series LED display is a fine pitch LED display product that can be flexibly and quickly spliced.
Pixel pitch:
0.93mm/1.25mm/1.56mm/1.875mm/2.5mm/3.7mmBrightness:
1,000nitsCabinet size:
300x675x58mm
16-bit grayscale provides smooth transitionsand enhancesimage detail.

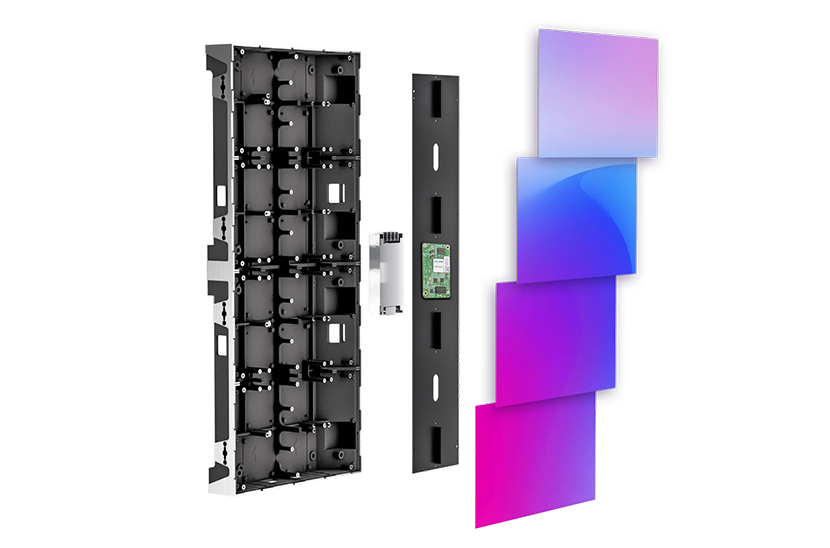

Compared to traditional soft modules, Flex series module just uses ahard link interface connect to HUB board, without ribbon cable andpower cables, which reduces the failure rate of the wiring and improvesstability.
Minimum diameter 1,145.9mm, consisting of 12cabinets arranged to form a circular display.
Surface treatment with G0B coating, providing surface water-resistant, dust-resistant, impact-resistant and anti-static.
| Model | 36A09 | 36A12 | 36A15 | 36A18 | 36A25 | 36A37 |
| Pixel Configuration | MIP | MIP | MIP | MIP | MIP | MIP |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5626 | 1.875 | 2.5 | 3.75 |
| Cabinet Size(mm)(WxHxD) | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 |
| Cabinet Resolution(WxH) | 320x270 | 240x540 | 192x432 | 160x360 | 120x270 | 80x180 |
| Cabinet Weight(kg/cabinet) | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 |
| Refresh Rate(Hz) | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Max. Power Consumption(W/㎡) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Avg. Power Consumption(W/㎡) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| Viewing Angle（H/V） | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
