The Outdoor series LED display is a high protection LED display product developed for the outdoor LED display market.
Pixel pitch(mm):
2.97/3.91/4.81/6.25/7.81/10.42Brightness:
6,000nitsCabinet size(mm)(WxHxD):
1,000x1,000x83/1,000x500x83
Smooth image without stutter, excellent viewing experience.

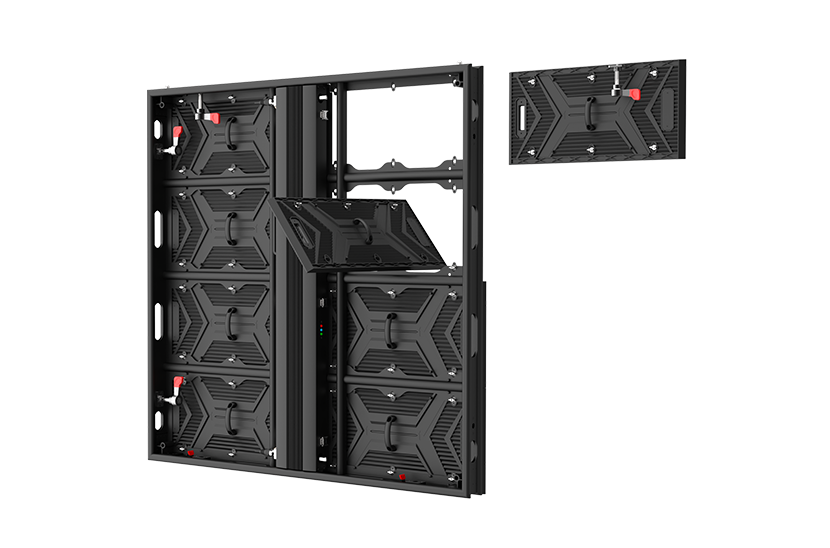

Frame, power box, modules are modular design for fast front and rear maintenance.
The product uses a common cathode design to reduce heat generation, lower screen temperature and improve stability and longevity. Besides, clients could also choose common anode design products.
IP65 protection for front and rear, waterproof,moisture-proof, anti-static and anti-collision.
| Model | P2.97 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 2.976 | 3.91 | 4.81 | 6.25 | 7.81 | 10.42 |
| Module Size(mm)（WxH） | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 |
| Cabinet Size(mm)（WxHxD） | 1,000x1,000x83(Customizable for 1,500 width and 500/750 height) |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
| Cabinet Weight(kg/cabinet) | 22.5 | 22.5/12 | 22.5/12 | 22.5/12 | 22.5/12 | 22.5/12 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness(nits) | 4,500 | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Max. Power Consumption(W/㎡) | 800 | 650 | 650 | 650 | 650 | 650 |
| Avg. Power Consumption(W/㎡) | 200-300 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 |
| Viewing Angle（H/V） | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | P2.97 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 2.976 | 3.91 | 4.81 | 6.25 | 7.81 | 10.42 |
| Module Size(mm)（WxH） | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 |
| Cabinet Size(mm)（WxHxD） | 1,000x1,000x83(Customizable for 1,500 width and 500/750 height) |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
1,000x1,000x83 1,000x500x83 |
| Cabinet Weight(kg/cabinet) | 22.5 | 22.5/12 | 22.5/12 | 22.5/12 | 22.5/12 | 22.5/12 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness(nits) | 4,500 | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Max. Power Consumption(W/㎡) | 800 | 650 | 650 | 650 | 650 | 650 |
| Avg. Power Consumption(W/㎡) | 200-300 | 100~200 | 100~200 | 100~200 | 100~200 | 100~200 |
| Viewing Angle（H/V） | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
